Why Use Multiple Capacitors in Parallel? Let's Unpack That.
1. Understanding Parallel Capacitance
So, you're staring at a circuit diagram and scratching your head, wondering why anyone would bother stringing together multiple capacitors in parallel. It seems a bit redundant, doesn't it? Like wearing two hats at once (stylish, maybe, but not always practical). Well, hold onto your hats (singular, preferably), because there are some genuinely good reasons to do this.
The primary reason, and the one that gets engineers all excited, is to increase the overall capacitance. Think of it like this: a single capacitor is like a bucket holding electrical charge. Now, imagine you need to hold a lot more charge. You could get a bigger bucket, or... you could simply connect multiple buckets together. That's essentially what parallel capacitors do. They combine their individual capacitances to create a larger, more capable charge storage system. It's the electrical equivalent of a group project, where everyone contributes to achieve a bigger goal.

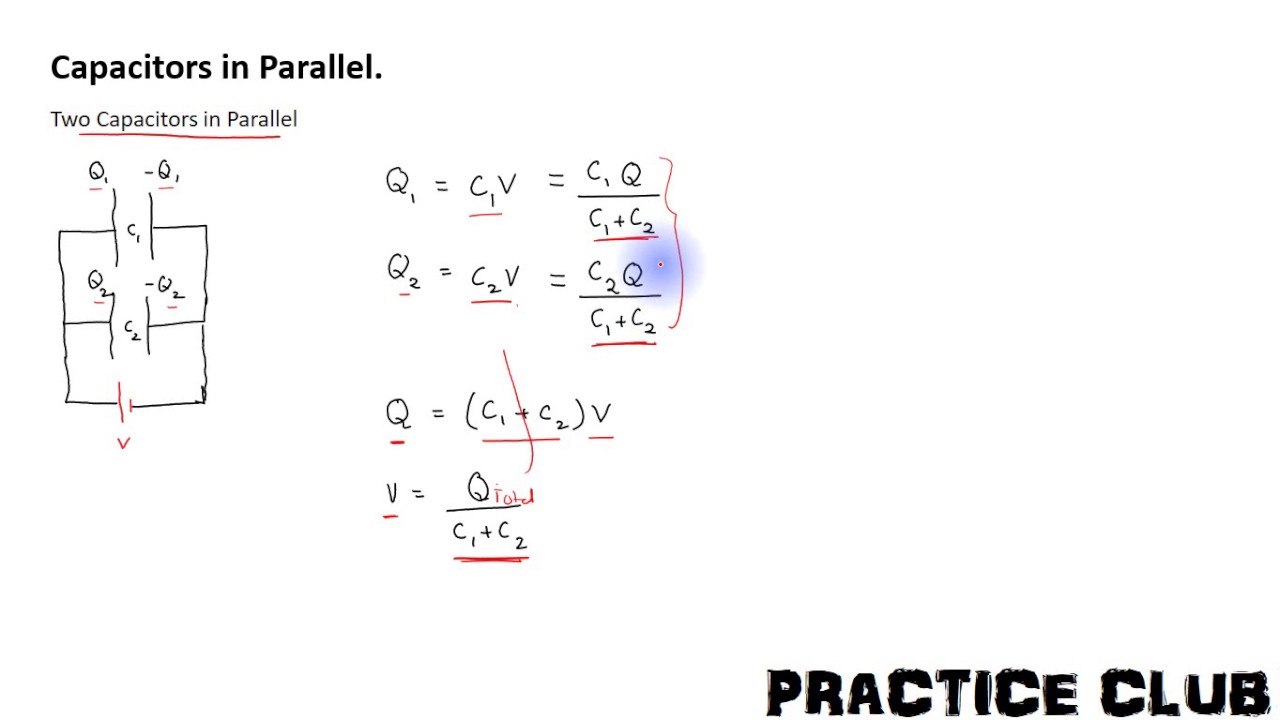

Mathematically, it's beautifully simple. The total capacitance of capacitors in parallel is simply the sum of their individual capacitances. Ctotal = C1 + C2 + C3 + ... See? No complicated calculus here. Just good old-fashioned addition. This increased capacitance can be crucial in applications where you need a larger reservoir of energy, like in power supplies or audio amplifiers, to smooth out voltage fluctuations and provide stable power.
But why not just use one large capacitor? Thats a fair question! Sometimes, that is the best solution. But often, practical constraints come into play. Availability, size, and cost can all influence your decision. It might be easier or cheaper to use several smaller, readily available capacitors instead of sourcing one giant, specialized one. Plus, smaller capacitors can sometimes have better performance characteristics at higher frequencies. It's all about finding the right balance for your specific needs.
2. Meeting Voltage Requirements
Beyond capacitance, voltage rating also plays a significant role. Capacitors have a maximum voltage they can handle before they... well, let's just say things get exciting (and not in a good way). If your circuit requires a higher voltage rating than a single capacitor can provide, you might be tempted to put capacitors in series. But that's a whole different ballgame. Parallel connection doesn't directly increase voltage rating.
However, using multiple capacitors in parallel can indirectly help manage voltage stresses. By distributing the current load across multiple components, you can reduce the risk of any single capacitor exceeding its voltage limits. It's like spreading the weight of a heavy object across several people; each person carries less load, and the overall task becomes easier.
Think of it like this: you have a circuit that requires a certain amount of current at a specific voltage. A single capacitor might struggle to deliver that current consistently, potentially leading to voltage drops and performance issues. By using multiple capacitors in parallel, you essentially provide multiple pathways for the current to flow, reducing the strain on each individual capacitor and maintaining a more stable voltage level. It's like adding extra lanes to a highway to ease traffic congestion.
Its important to note that all capacitors in a parallel configuration must have voltage ratings that equal or exceed the voltage in the circuit. You cant put a 10V capacitor in parallel with a 50V capacitor in a 50V circuit. The 10V capacitor will become very unhappy, very quickly. So, always double-check those voltage ratings!
3. ESR and ESL Reduction
4. Reduced Equivalent Series Resistance (ESR)
Now, let's get a little more technical. Capacitors aren't perfect. They have imperfections, like Equivalent Series Resistance (ESR). ESR is essentially a small resistance that's in series with the ideal capacitance. This resistance can cause power loss and heat generation, especially at higher frequencies. Think of it as friction in the capacitor, hindering the smooth flow of electrical charge.
When you put capacitors in parallel, you effectively reduce the overall ESR. This is because the ESR of each capacitor is effectively divided by the number of capacitors. So, if you have four identical capacitors in parallel, the total ESR is one-quarter of the ESR of a single capacitor. This reduction in ESR can lead to improved circuit performance, particularly in applications where low impedance is crucial.
Imagine you're trying to push a heavy box across a rough floor. The roughness of the floor represents the ESR. If you have multiple people pushing the box together, each person experiences less resistance, and the box moves more easily. Similarly, with parallel capacitors, the lower ESR allows for more efficient energy transfer and reduced power loss.
This is particularly important in high-frequency applications, where ESR can significantly impact performance. By using multiple capacitors in parallel, you can minimize the ESR and ensure that your circuit operates efficiently and reliably.
5. Reduced Equivalent Series Inductance (ESL)
Just like ESR, capacitors also have Equivalent Series Inductance (ESL). ESL is the inductance that's inherently present in the capacitor due to its internal construction. Inductance opposes changes in current, and high ESL can cause ringing and oscillations in your circuit, especially at high frequencies. Think of it as inertia in the capacitor, resisting sudden changes in the flow of electrical charge.
Similar to ESR, putting capacitors in parallel also reduces the overall ESL. This is because the ESL of each capacitor is also effectively divided by the number of capacitors. A lower ESL means that the capacitor can respond more quickly to changes in current, leading to improved transient response and reduced noise in your circuit.
Imagine you're trying to stop a runaway train. The inertia of the train represents the ESL. If you have multiple brakes applied simultaneously, the train stops more quickly and smoothly. Similarly, with parallel capacitors, the lower ESL allows for faster and more stable response to changes in current.
Again, this is especially beneficial in high-frequency applications. By minimizing the ESL, you can ensure that your circuit operates cleanly and without unwanted oscillations.
6. Practical Considerations and Component Selection
Okay, so we know the theory. Now, let's talk about the practical side of things. Choosing the right capacitors for your parallel configuration is crucial. You can't just grab any old capacitor and expect it to work perfectly. You need to consider factors like capacitance value, voltage rating, temperature stability, and tolerance.
Make sure the capacitors you choose have similar characteristics. Ideally, you'd want to use identical capacitors from the same manufacturer. This ensures that they have the same ESR, ESL, and temperature coefficients, minimizing any potential imbalances in the circuit. Mismatched capacitors can lead to uneven current distribution and potentially damage some of the components.
Also, think about the physical layout of your circuit. Keep the leads of the capacitors as short as possible to minimize parasitic inductance. Arrange the capacitors symmetrically to ensure even current distribution. Use proper decoupling techniques to prevent noise from propagating through the circuit. Small details can make a big difference in performance.
Finally, don't forget about cost. While using multiple capacitors can offer performance advantages, it can also increase the cost of your circuit. Weigh the benefits against the cost and choose the solution that best meets your needs. Sometimes, a single, high-quality capacitor might be a more cost-effective option than multiple cheaper ones. It's all about finding the right balance for your specific application.
